Sea Rail 19 (2014)

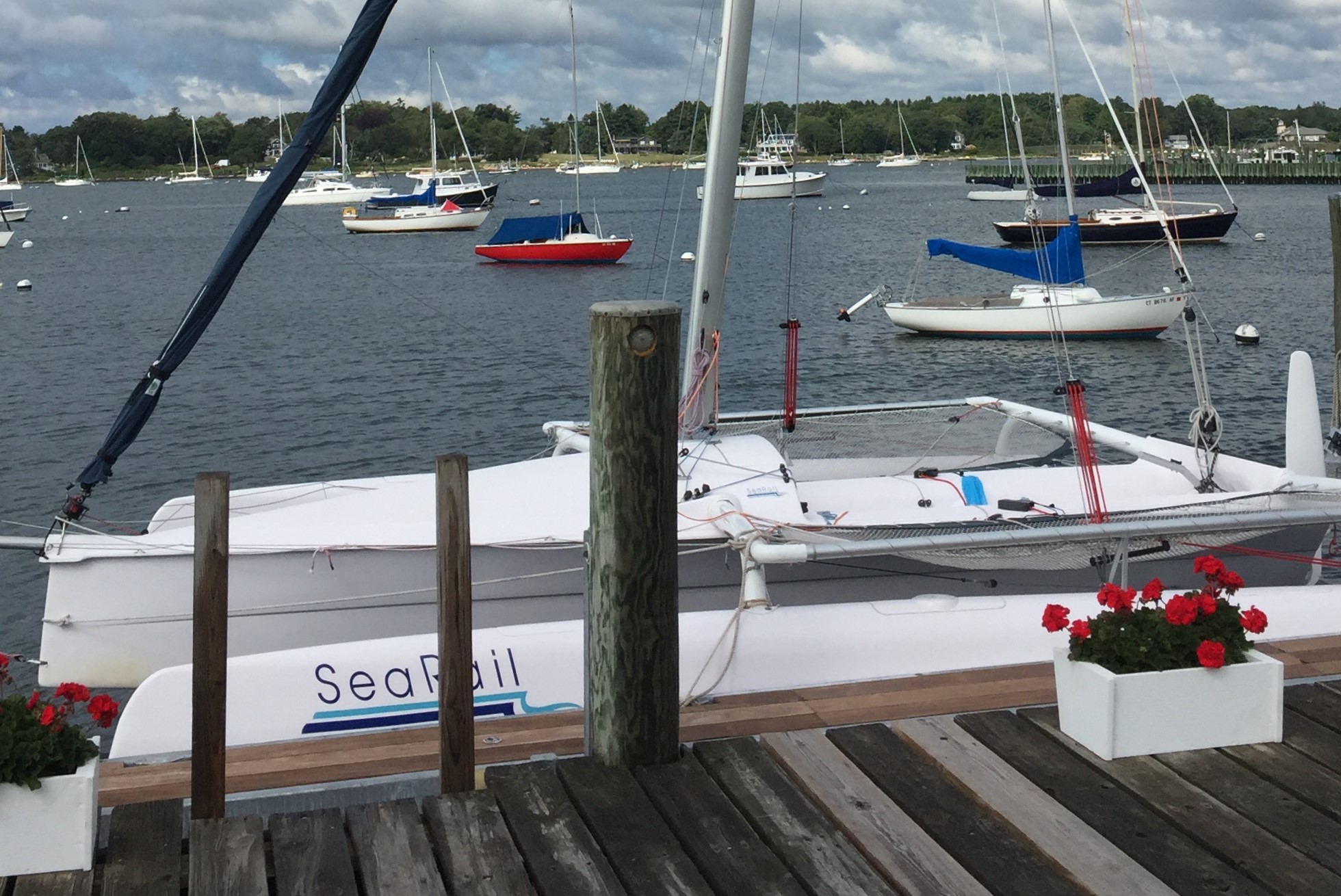

The SeaRail 19 is an exciting entry level trimaran. The Nigel Irens design is very modern, light weight, and easily trailerable behind most any vehicle. This boat has been stored in shed in winter and on lift out of water in summer, raced Wednesday nights, and has been recreationally sailed in Stonington Harbor, CT.

$20,000Purchase

  • Make or Manufacturer

    Sea Rail

  • Model

    Sea Rail 19

  • Year

    2014

  • Category

    Sailboat

  • Class

    Multihull

  • Profile

    Trimaran

  • Designer

    Nigel Irens Design Team

  • builder

    Phil Medley, Fun Boats Vietnam

  • Length Overall

    5.8m / 19ft

  • Beam

    4.1m / 14ft

  • Displacement

    320kg / 700lb

  • Material

    Fiberglass / GRP

DIMENSIONS

~ Length Overall: 19' (5.8 m) ~ Beam (Max): 14' 6" (4.45 m) ~ Beam (Folded): 6' 11" (1.8 m) ~ Mast Length: 29' 10" (9.12 m) ~ Weight: 700 lb (317 kg) Fully laden (100% of the sailing gear onboard) ~ Towing Weight. 1,200 lbs (500kg)

Sail Area ~ Main: 176 sq ft (16 sq m) ~ R/F jib: 83 sq ft (7.7 sq m) ~ Spinnaker: 278 sq ft (22 sq m)

CONSTRUCTION

Hand laid vacuum bagged process using premium marine grade gelcoat, vinylester skins, PVC closed-cell foam core(unsinkable) and carbon reinforcements.

The Sea Rails were built by Phil Medley who was head of production at Corsair Marine for over 20 yrs and oversaw the factory's move from Chula Vista, CA to HCMC, Vietnam)

DECK

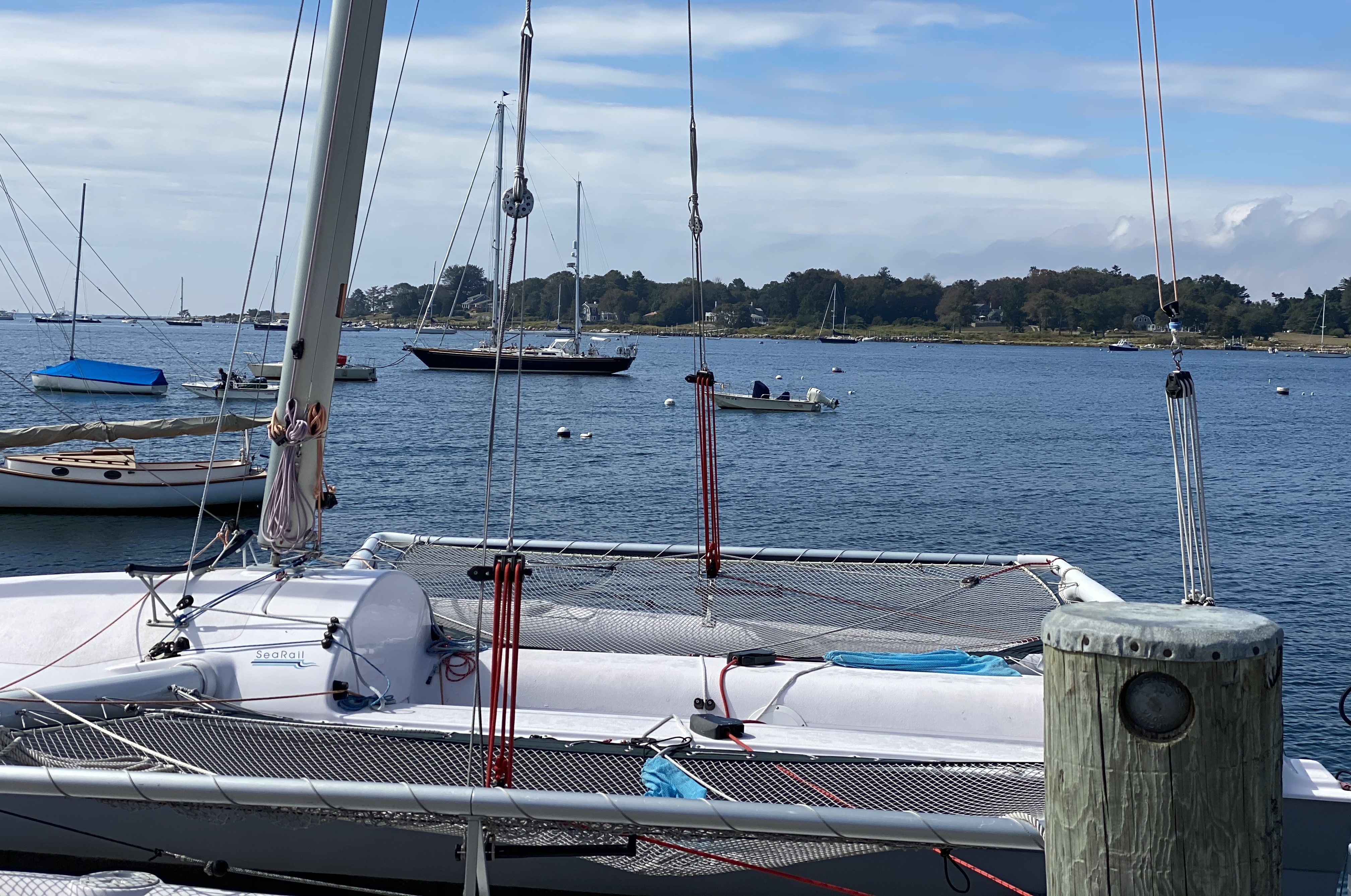

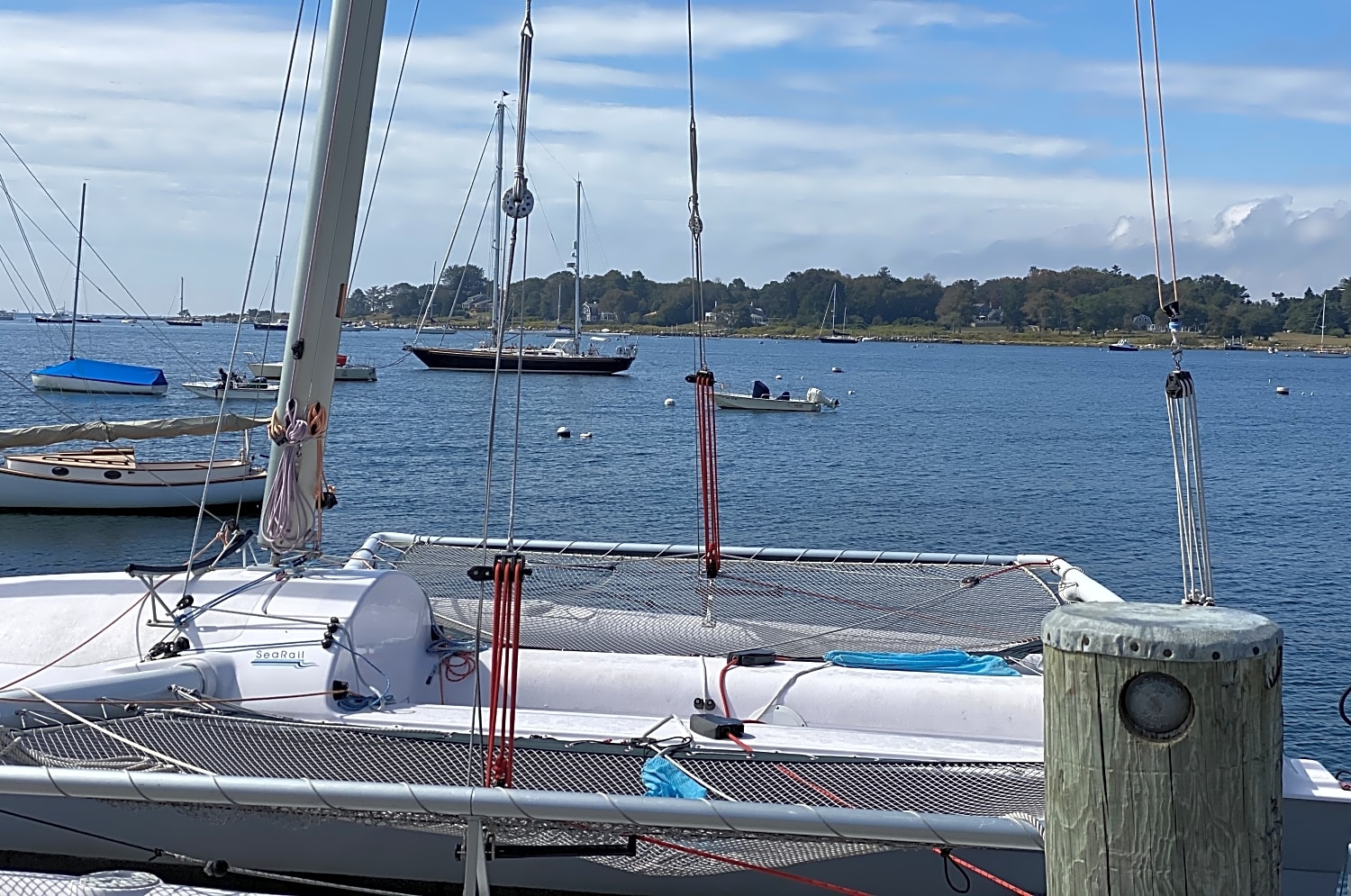

~ 30' Aluminum mast with a 2:1 main halyard ~ Colligo synthetic furling torque-line forestay ~ Dyneema shrouds with 12:1 adjustable canting system with safety stops ~ Self tacking jib system with a 2:1 jib sheet ~ Traveler track with custom windward-sheeting traveler ~ Custom 4 foot aluminum bow pole with attached furler (also the original 2 foot aluminum bow pole) ~ 6:1 Main sheet system ~ Rotator control tackle ~ Cunningham ~ Dyneema knotless netting ~ Composite daggerboard ~ Composite dagger rudder ~ Aluminum rudder case and tiller handle with tiller extension ~ Outboard motor mounting bracket ~ Mast raising system ~ Forward and aft mast supports ~ Lockable watertight companionway hatch ~ Forward storage area / single berth ~ Rocna 22lb anchor, stainless chin and rode

SAILS

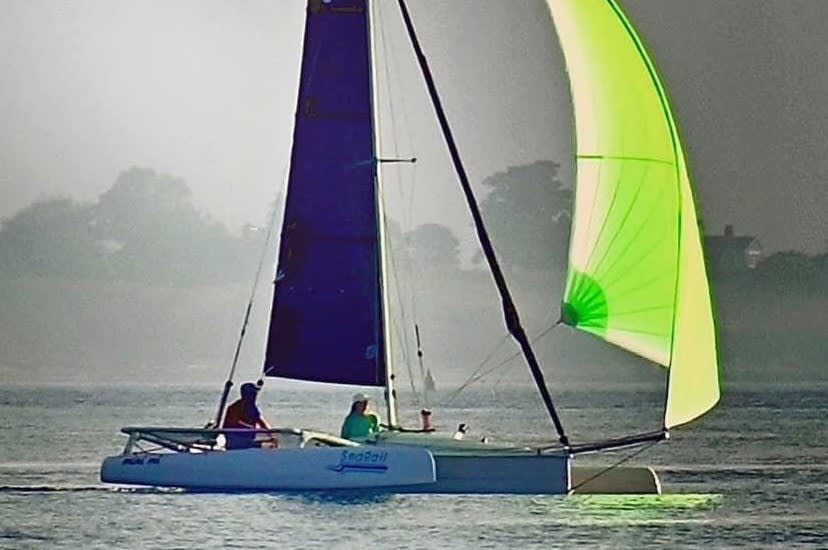

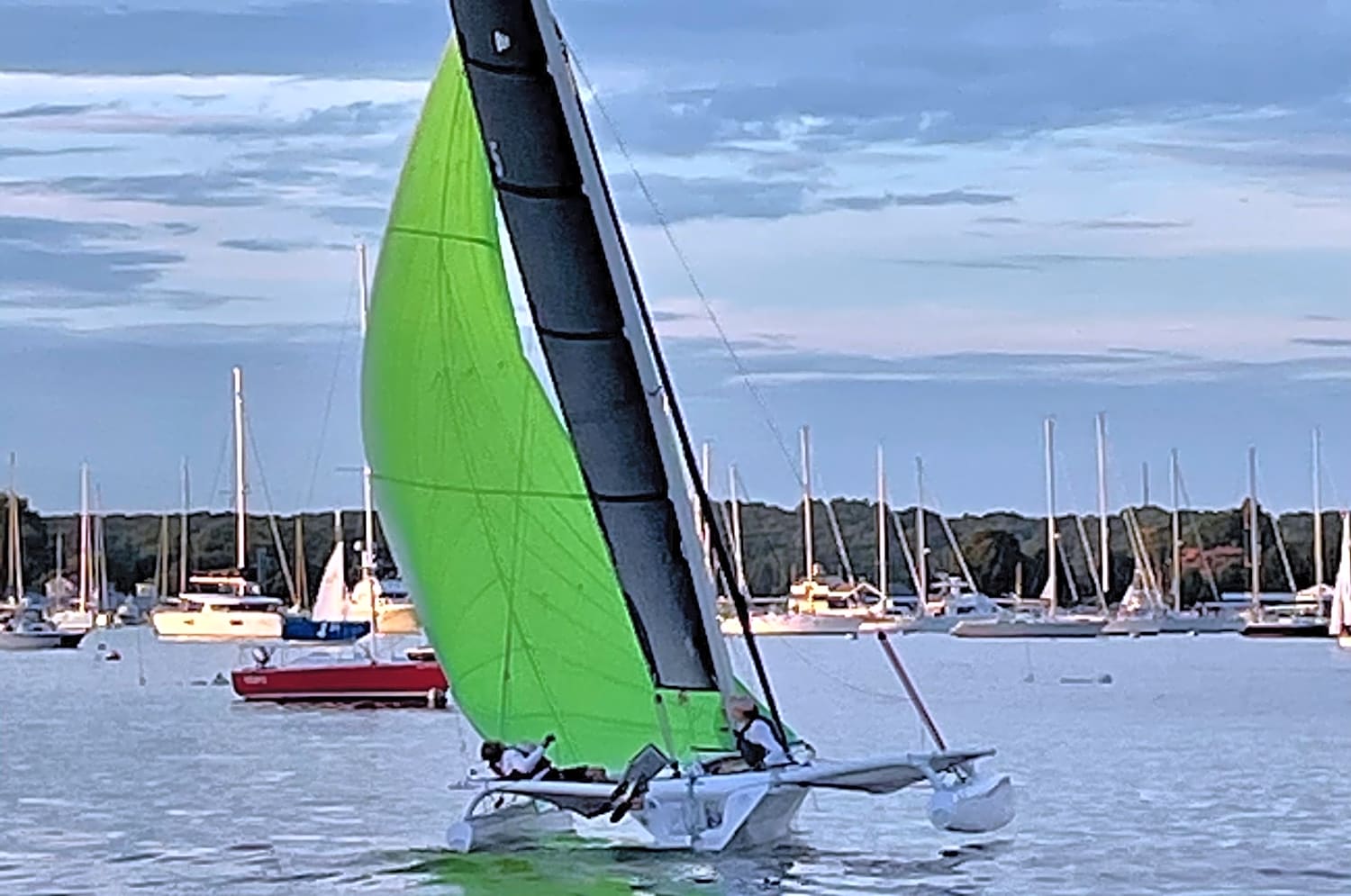

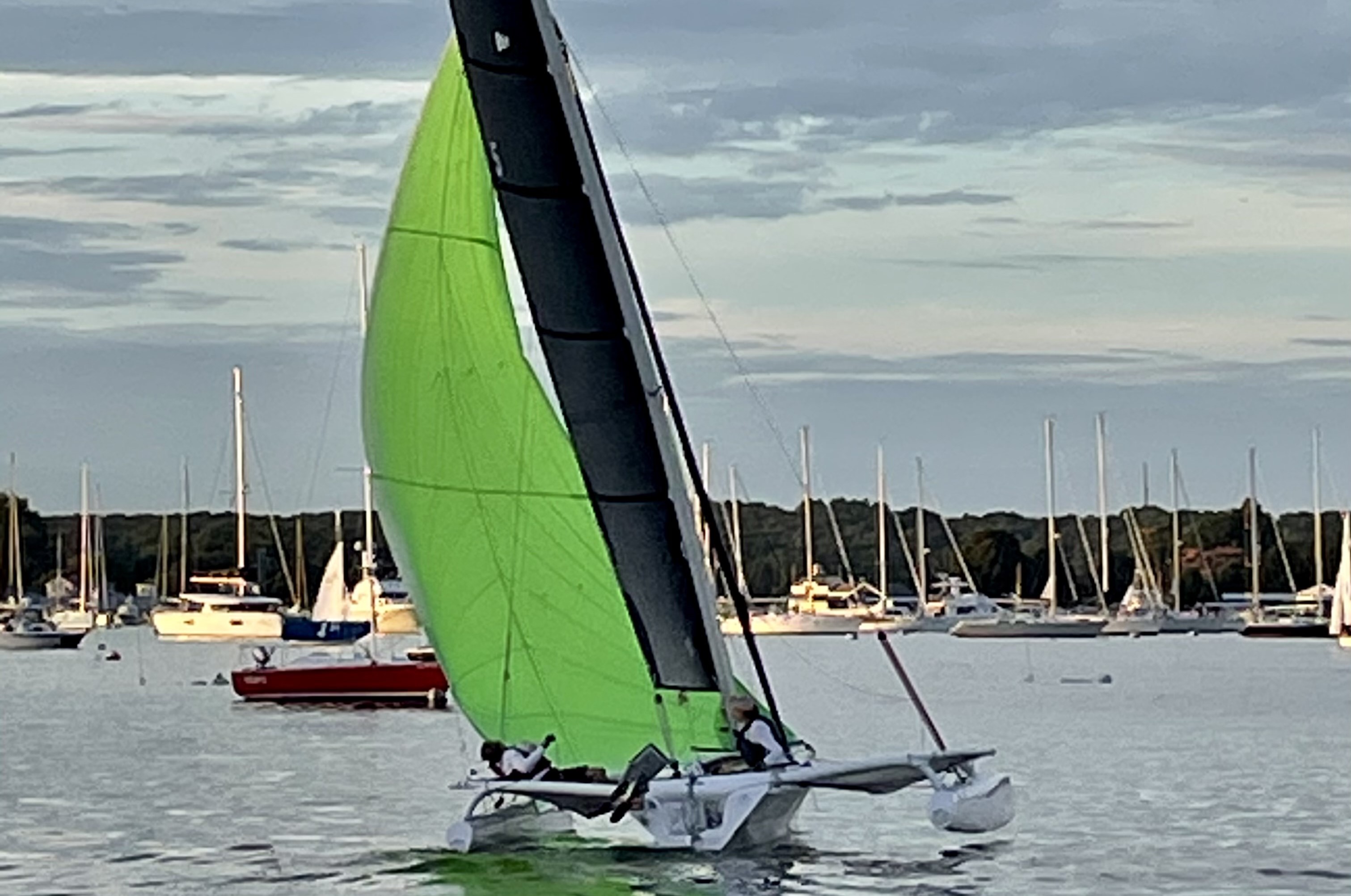

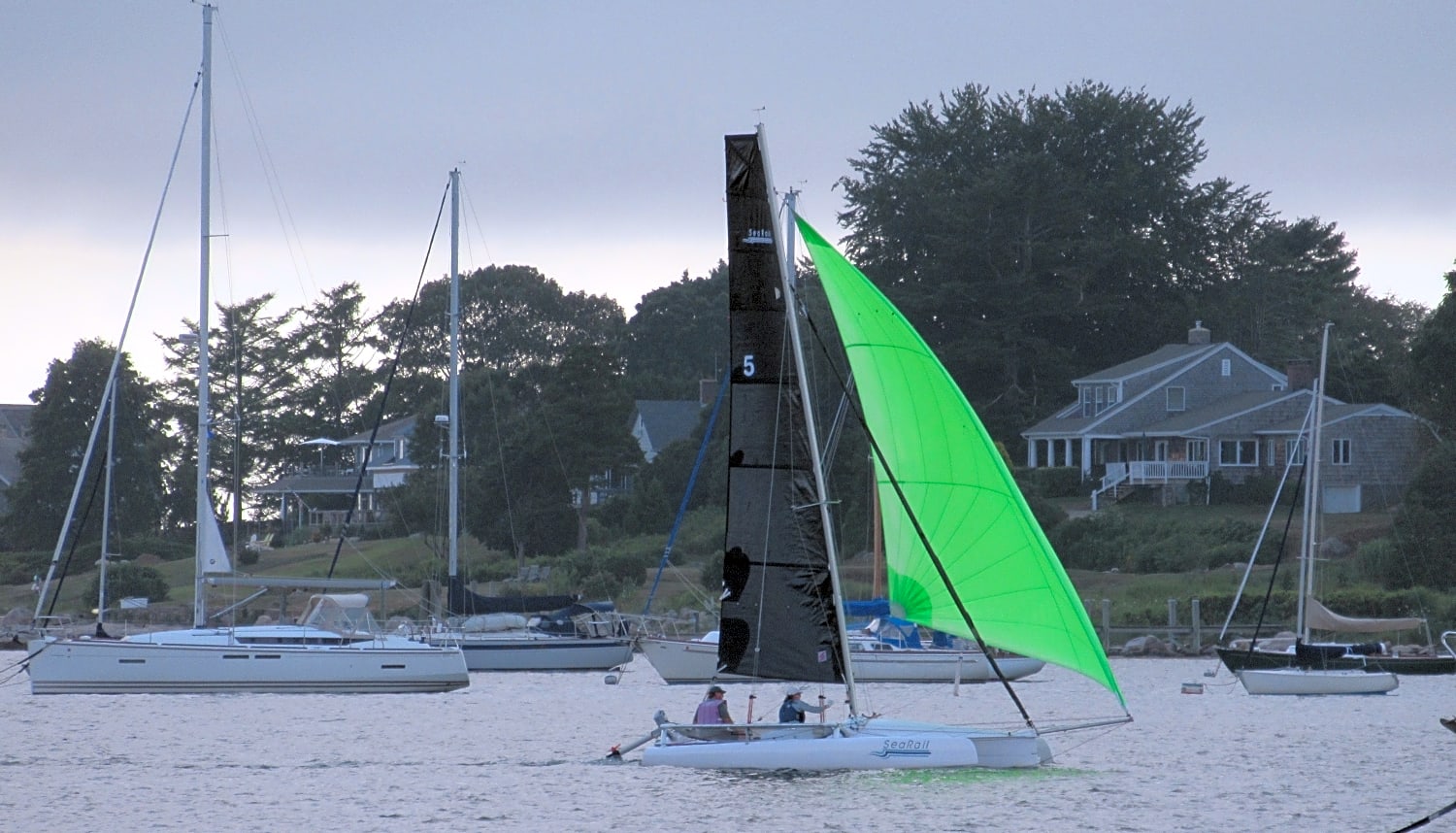

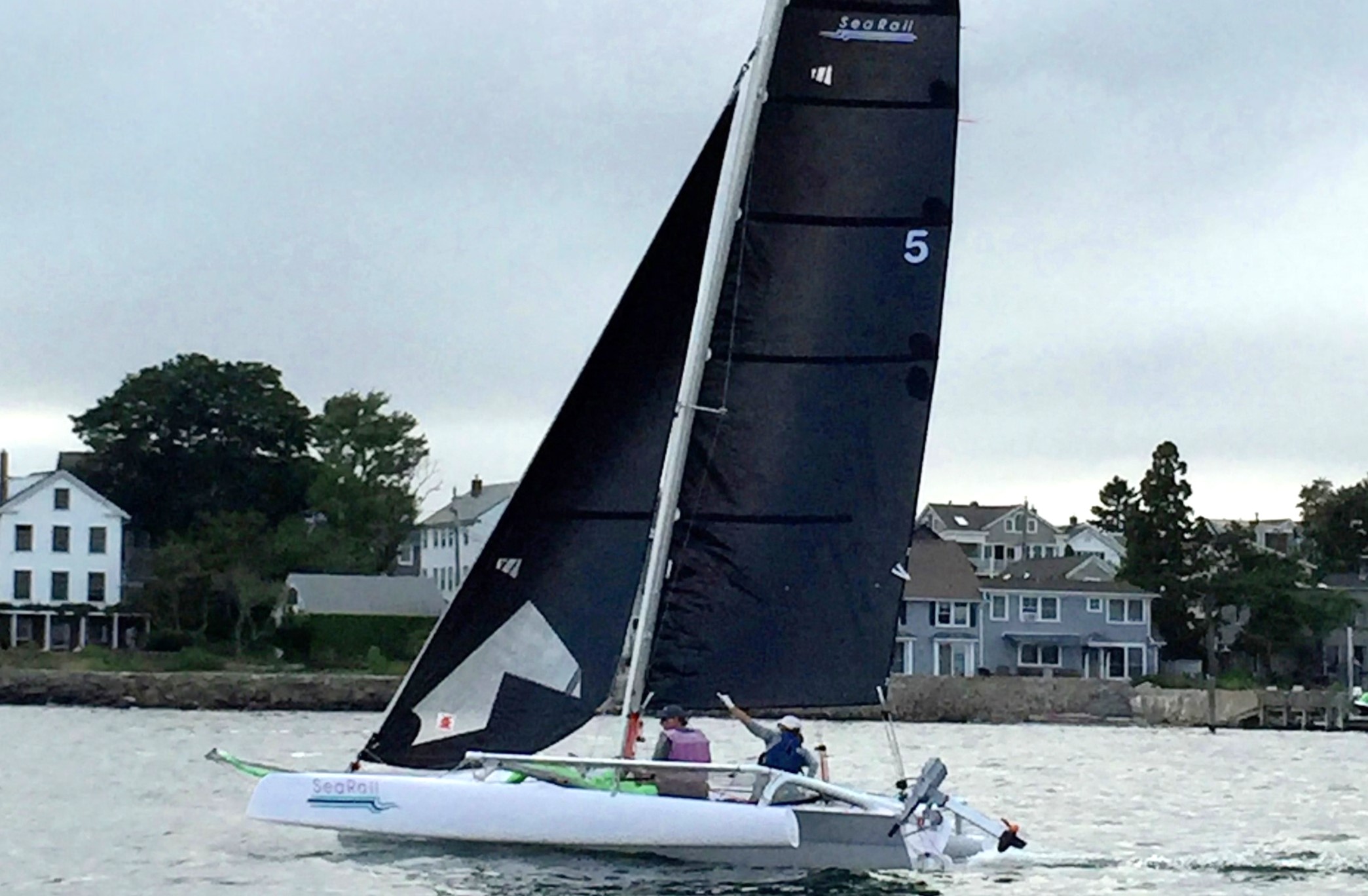

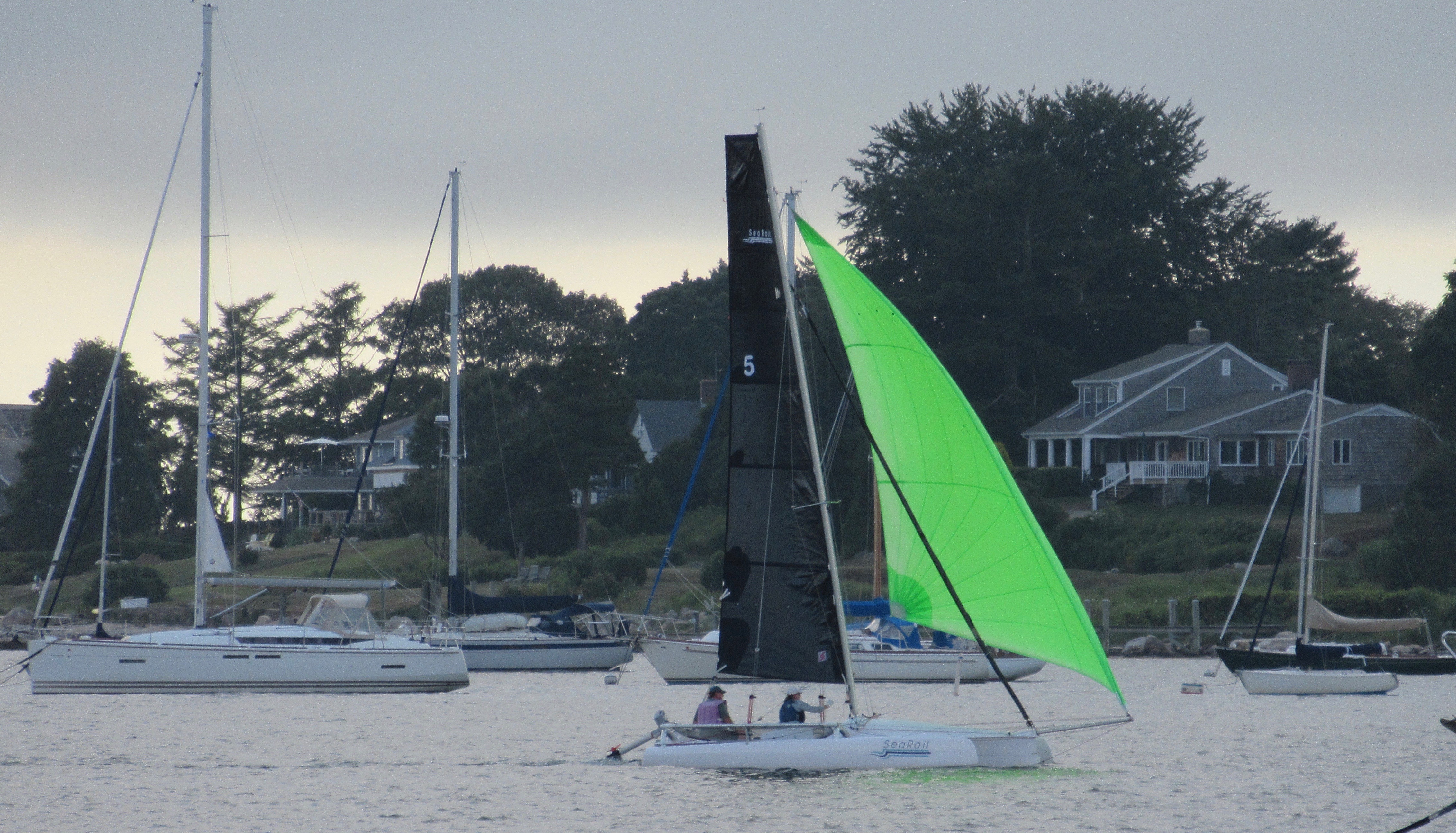

There are 2 Full Sets Of Sails, all with sail bags: ~ 2015 - Smyth square top boomless main; black. ~ 2015 - Smyth self-tacking roller furling jib; black with gray ATN mooring sock ~ 2015 - Smyth roller-furling asymmetrical spinnaker; gecko green ~ 2014 - Whirlwind square top boomless main; greyish with 2 sets of reefing points, reefing clips, clue loops and quick-release reefing set-up. ~ 2014 - Whirlwind self-tacking roller furling jib; greyish ~ 2014 - Whirlwind furling asymmetrical spinnaker - never used ~ 2015 - Dyneema spinnaker catchers which attach from bow sprit to float beams

TRAILER

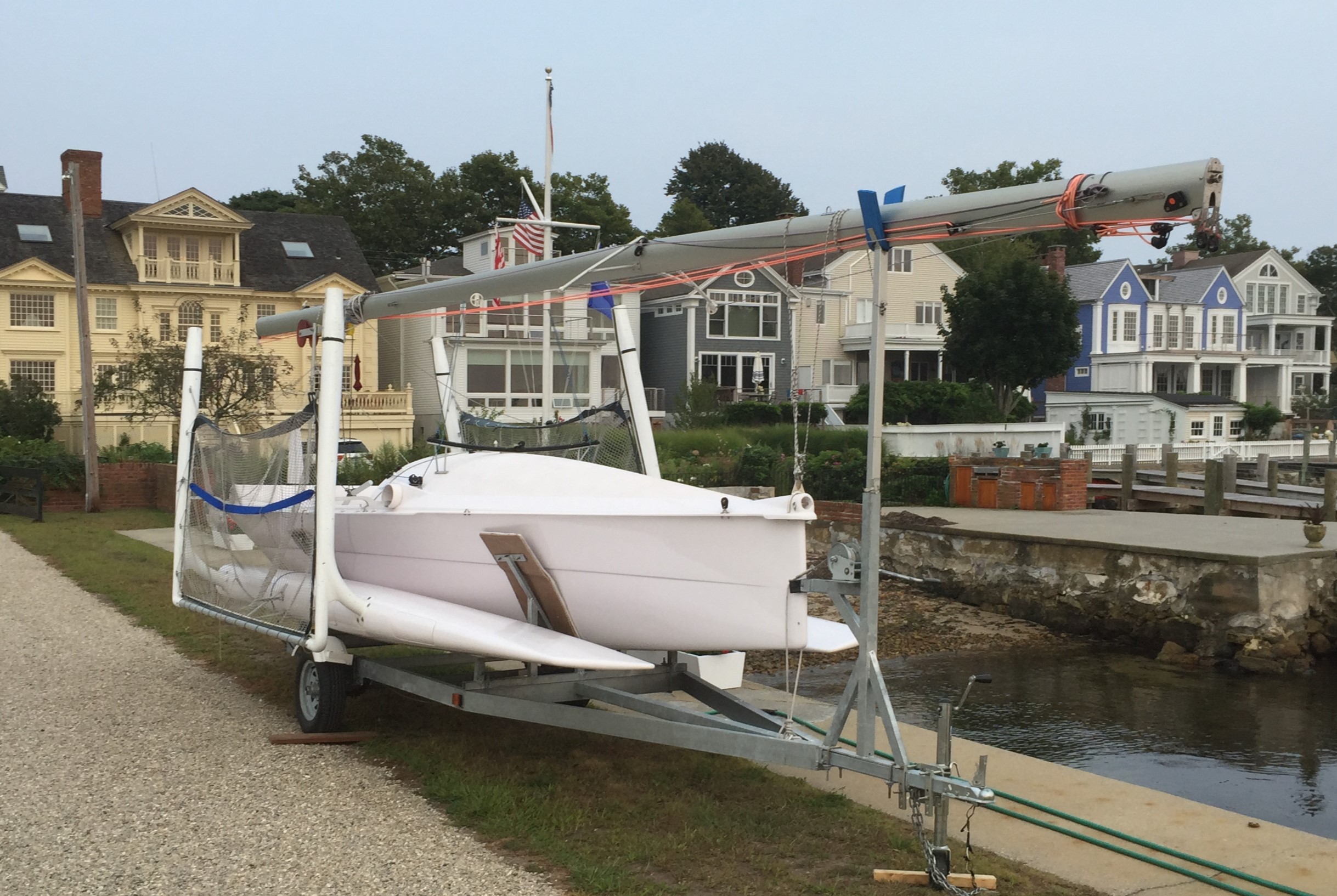

EZ Load galvanized trailer with fiberglass cradles mounted on trailer, Bearing Buddies, and 2 extra hubs
