Sea Rail 19 #3 (2013)

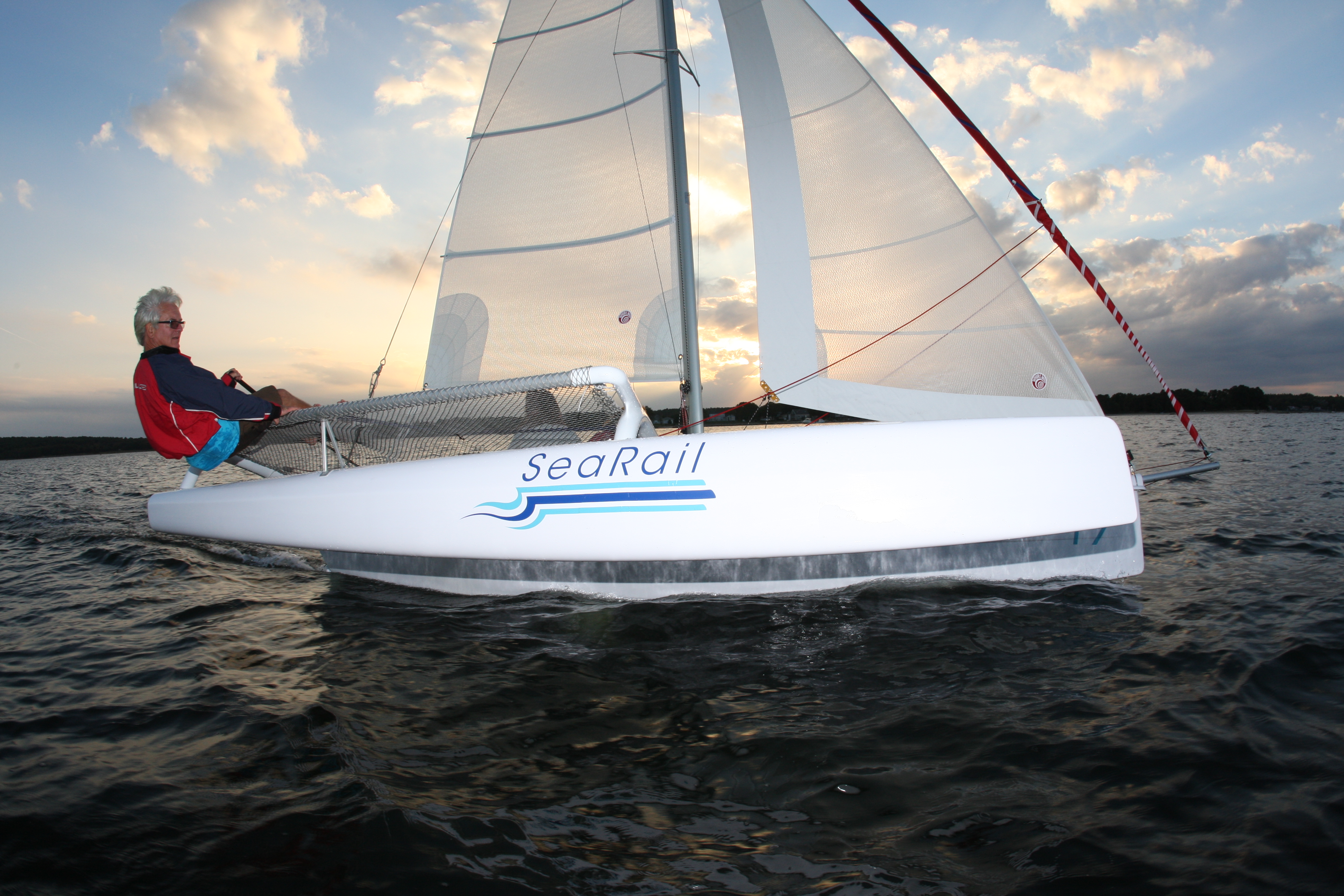

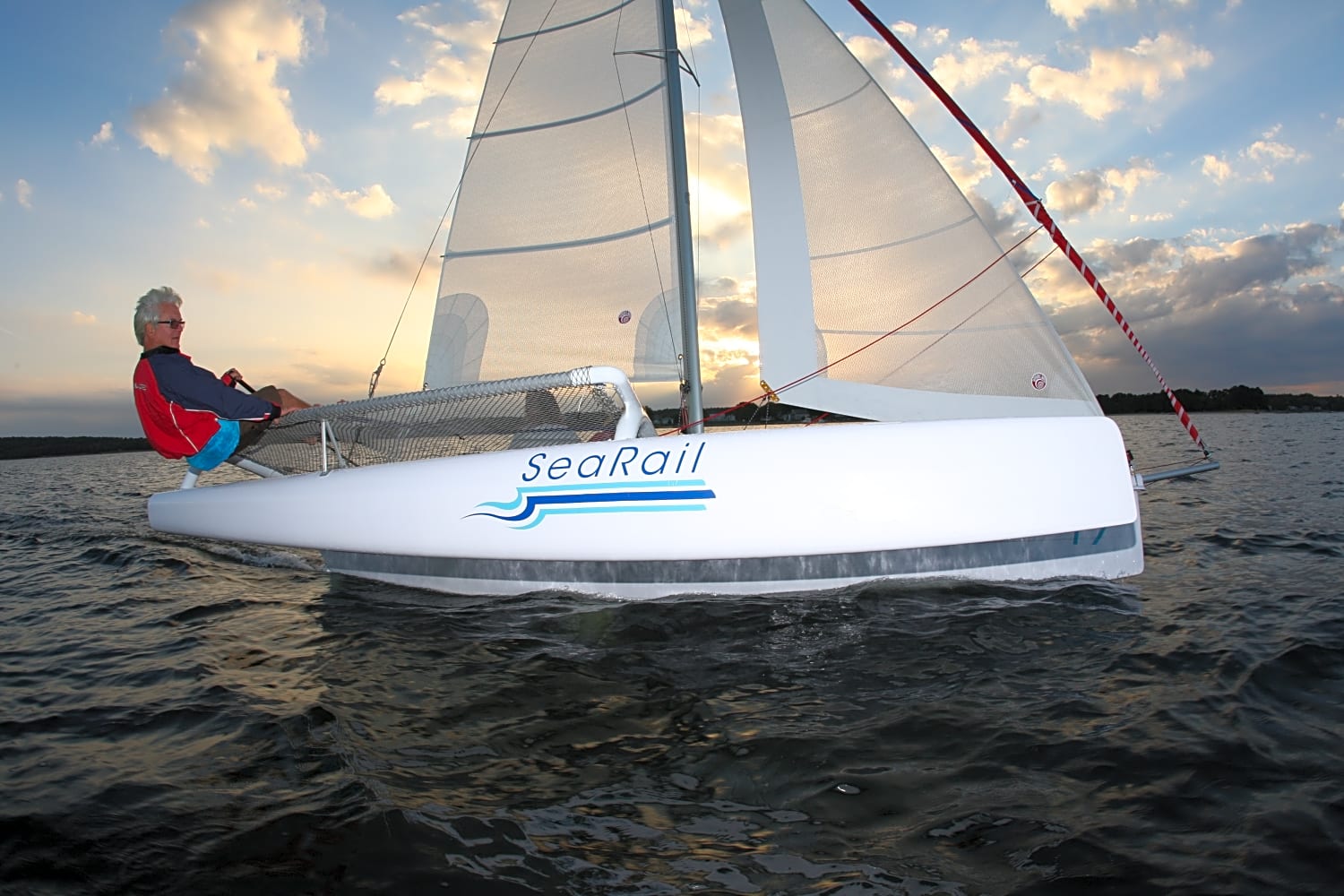

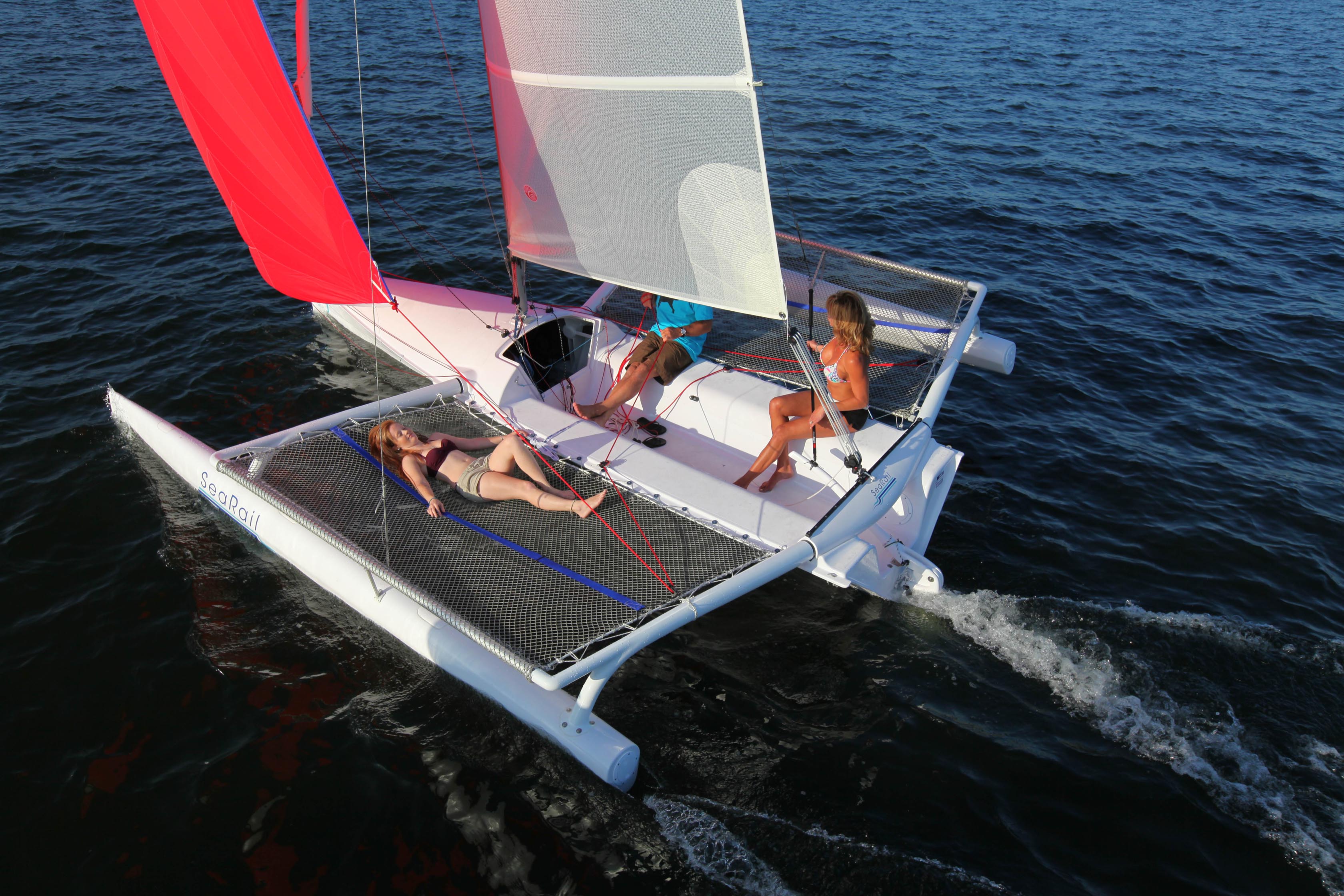

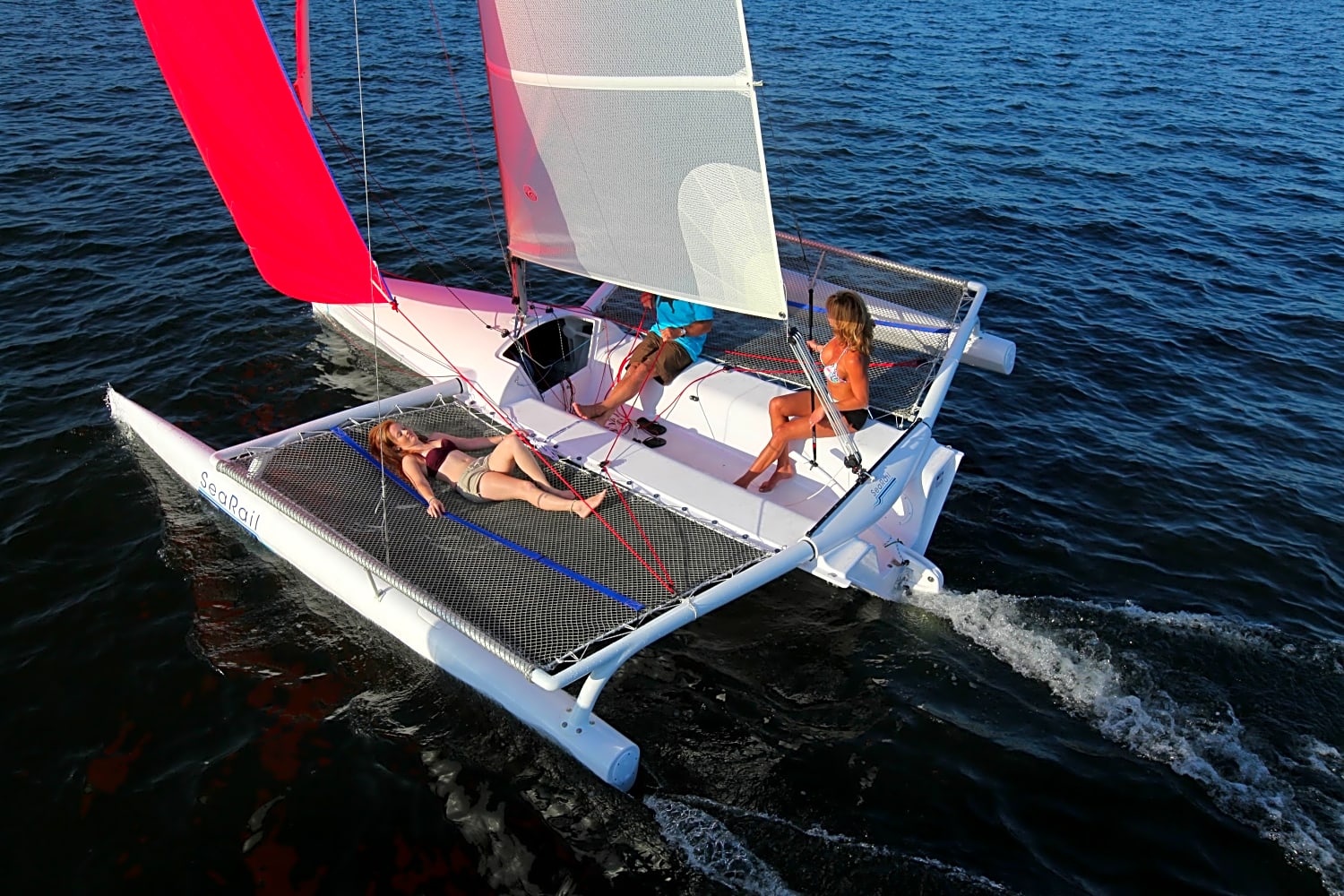

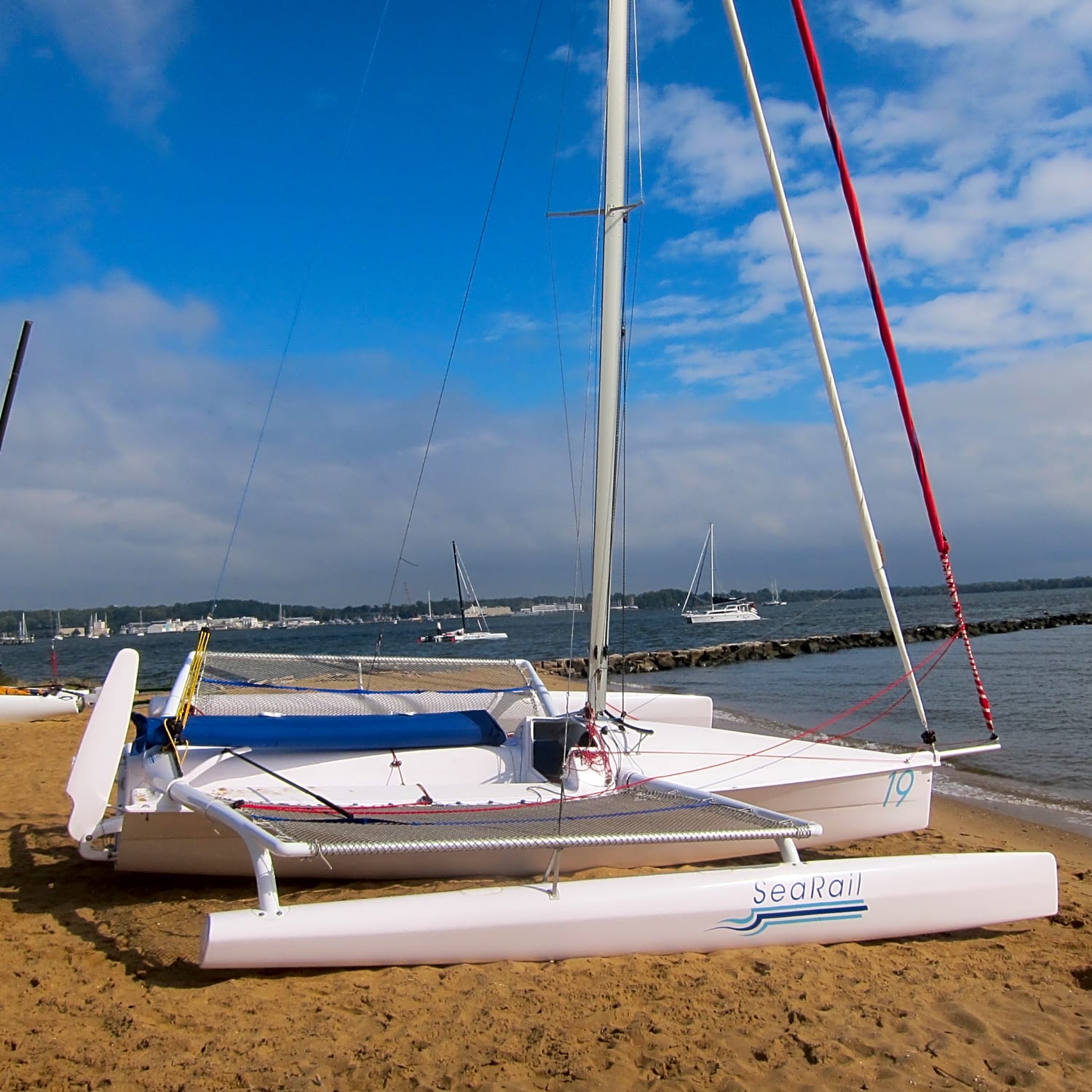

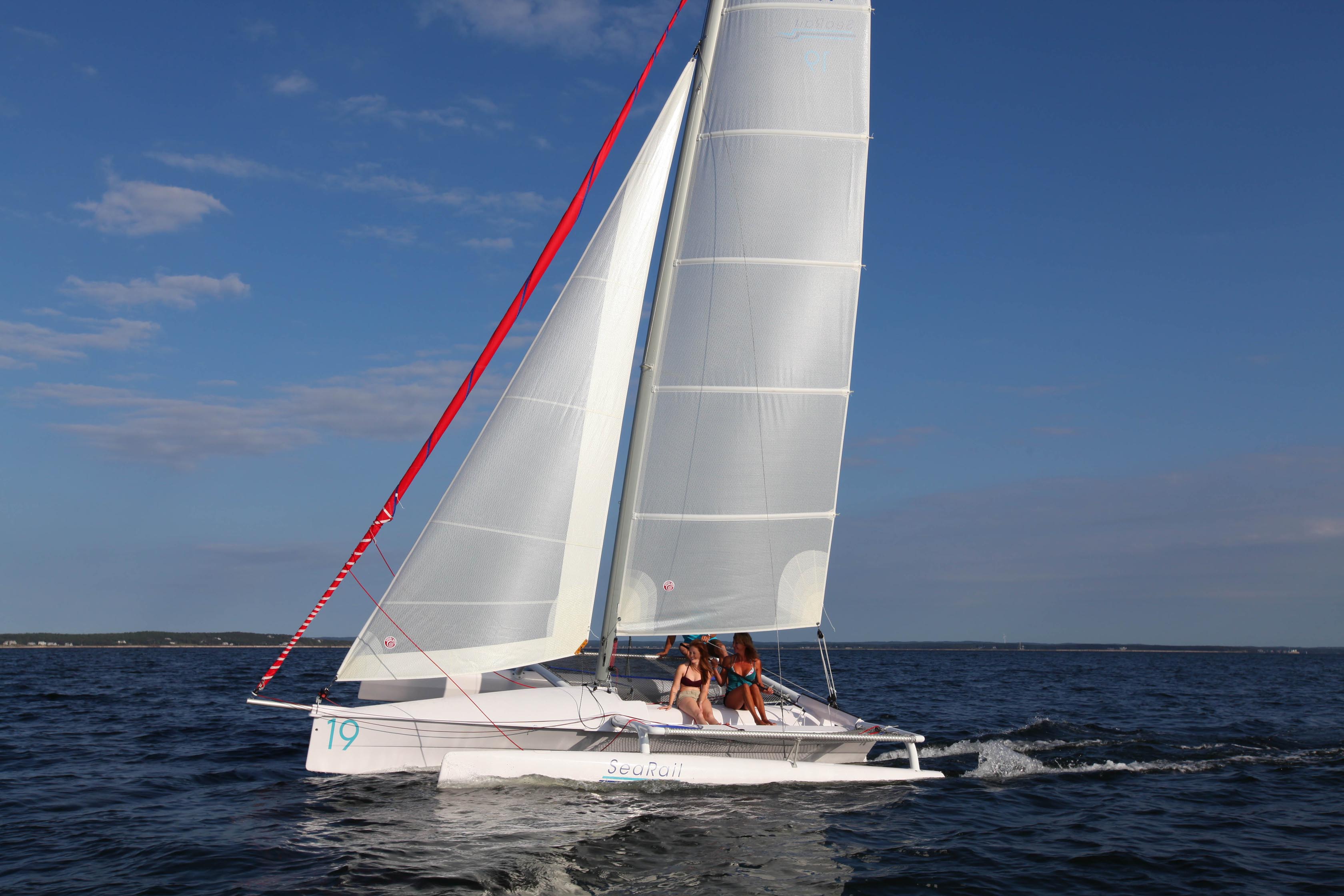

The Sea Rail 19 is an exciting entry level trimaran, very modern, lightweight, and easily trailerable behind most any vehicle. This boat is Hull #3 from 2013, and has had very light use.
Make or Manufacturer
Sea RailModel
Sea Rail 19Year
2013Category
SailboatClass
MultihullProfile
TrimaranDesigner
Nigel Irens Design Teambuilder
Phil Medley, Fun Boats VietnamLength Overall
5.8m / 19ftBeam
4.3m / 14ftDisplacement
290kg / 640lbMaterial
Fiberglass / GRP
DIMENSIONS
~ Length Overall: 19' (5.8 m) ~ Beam (Max): 14' 6" (4.45 m) ~ Beam (Folded): 6' 11" (1.8 m) ~ Mast Length: 29' 10" (9.12 m) ~ Weight: 700 lb (317 kg) Fully laden (100% of the sailing gear onboard) ~ Towing Weight. 1,200 lbs (500kg)

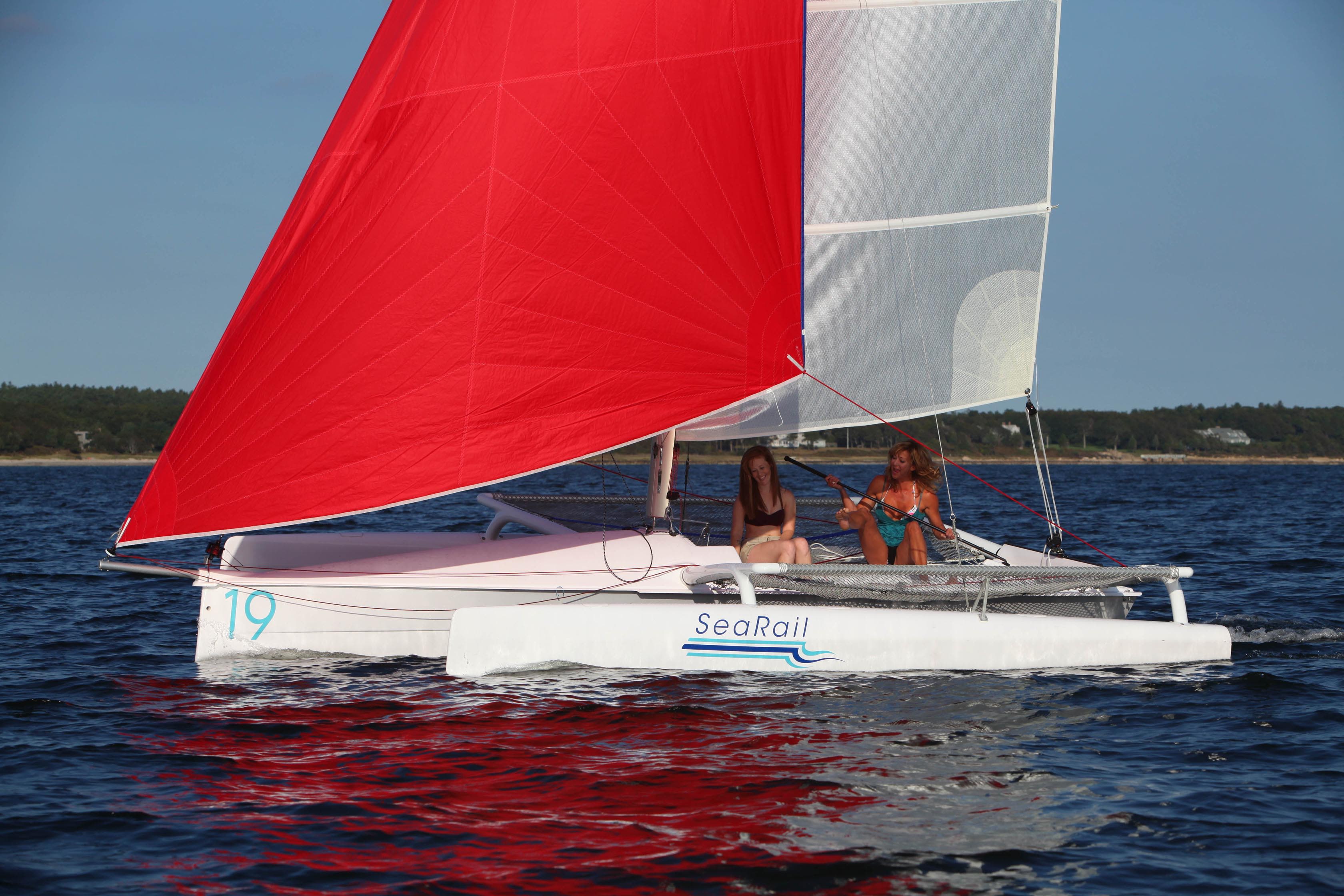

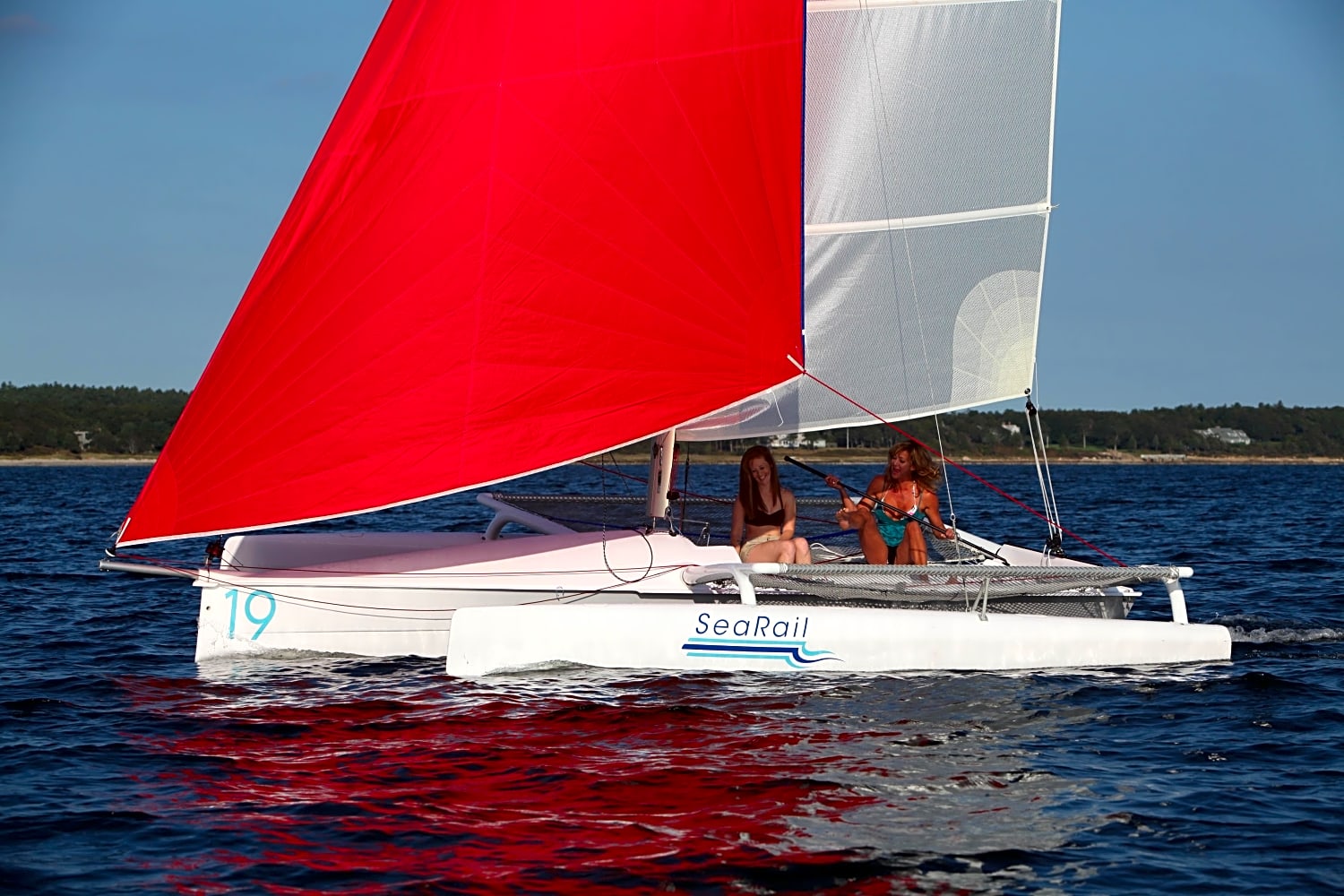

SAIL AREA: ~ Main: 176 sq ft (16 sq m) ~ R/F jib: 83 sq ft (7.7 sq m) ~ Spinnaker: 278 sq ft (22 sq m)
CONSTRUCTION
Hand laid vacuum bagged process using premium marine grade gelcoat, vinylester skins, PVC closed-cell foam core(unsinkable) and carbon reinforcements.
The Sea Rails were built by Phil Medley who was head of production at Corsair Marine for over 20 yrs and oversaw the factory's move from Chula Vista, CA to HCMC, Vietnam).
DECK

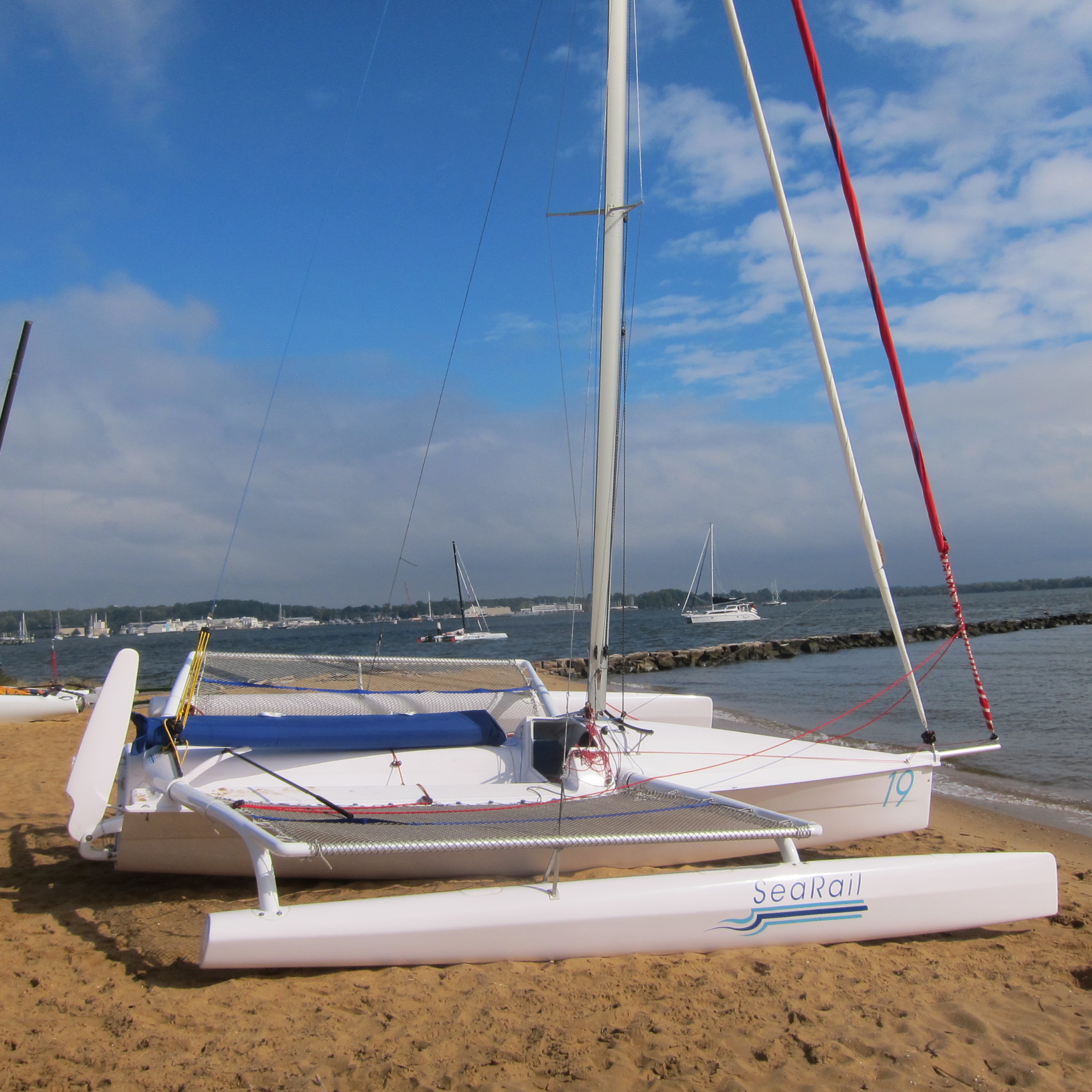

~ 30' Aluminum mast with a 2:1 main halyard ~ Colligo synthetic furling torque-line forestay ~ Dyneema shrouds with 12:1 adjustable canting system with safety stops ~ Self tacking jib system with a 2:1 jib sheet ~ Traveler track with custom windward-sheeting traveler ~ Custom 4 foot aluminum bow pole with attached furler (also the original 2 foot aluminum bow pole) ~ 6:1 Main sheet system ~ Rotator control tackle ~ Cunningham ~ Dyneema knotless netting ~ Composite daggerboard ~ Composite dagger rudder ~ Aluminum rudder case and tiller handle with tiller extension ~ Outboard motor mounting bracket ~ Mast raising system ~ Forward and aft mast supports ~ Lockable watertight companionway hatch ~ Forward storage area / single berth
SAILS
~ Boomless main with one reef point ~ Roller furling jib with a Harken furler, zipper luff, and UV sun shield ~ Spinnaker with spinnaker pole, Ronstan continuous line furler and 4 ratchet blocks
TRAILER

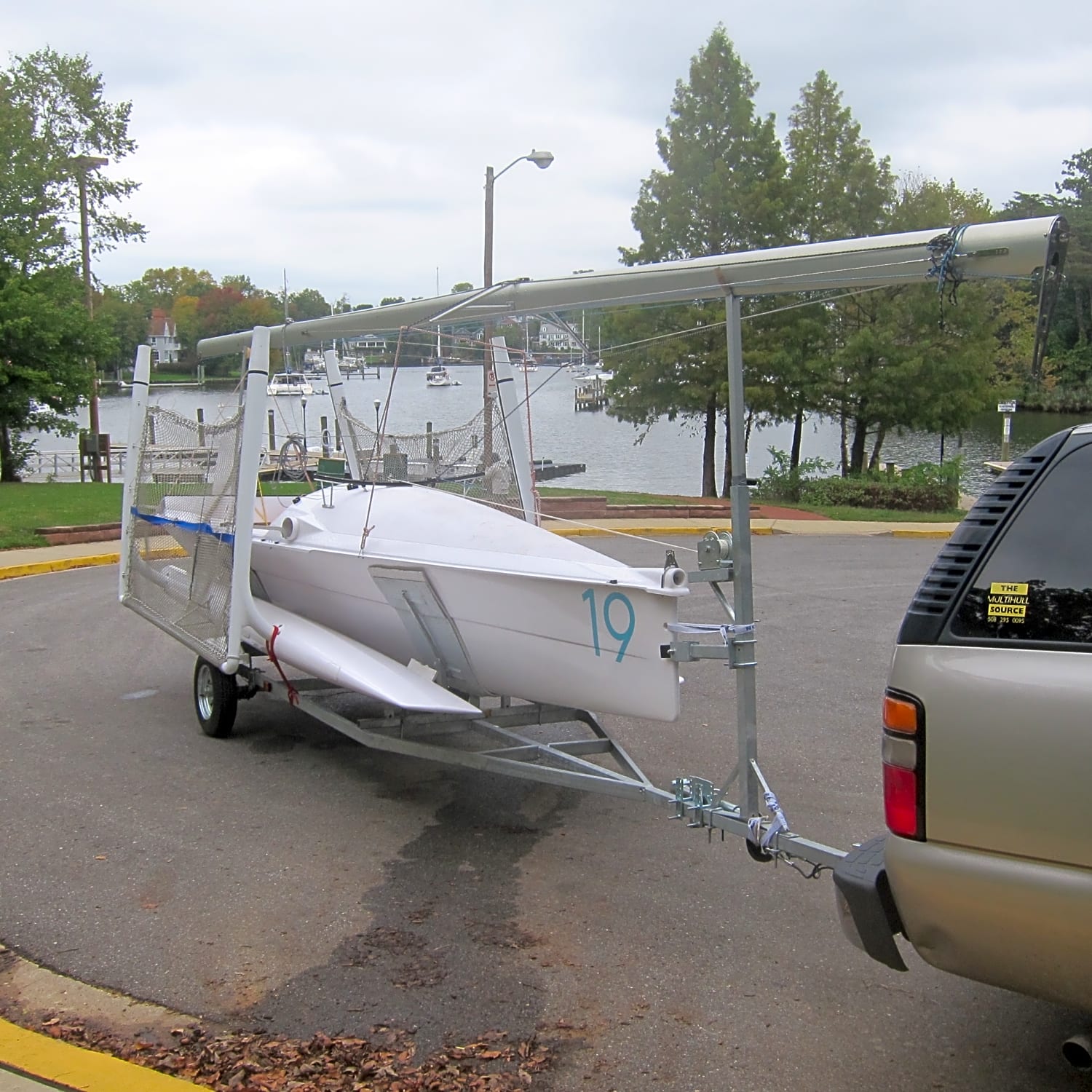

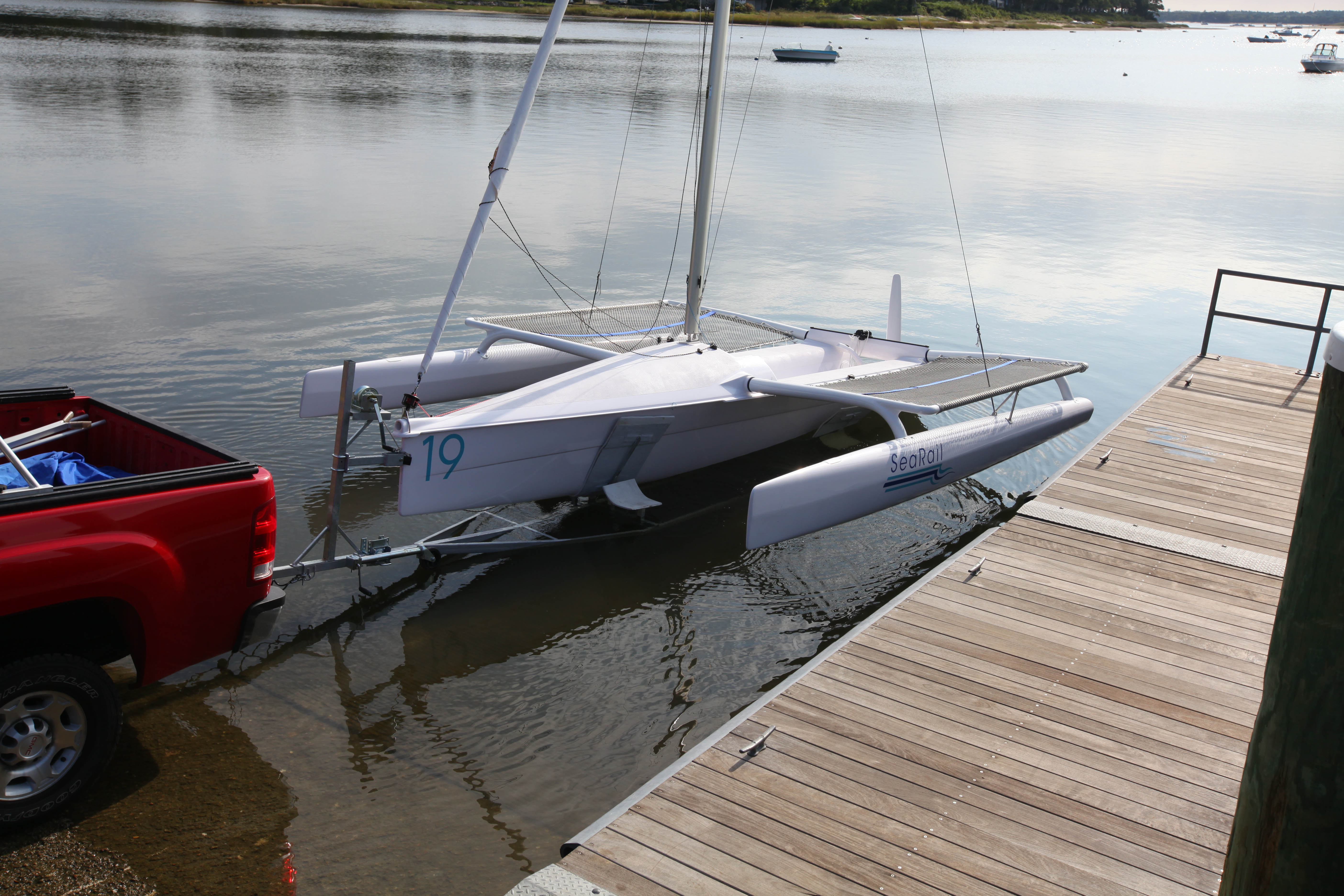

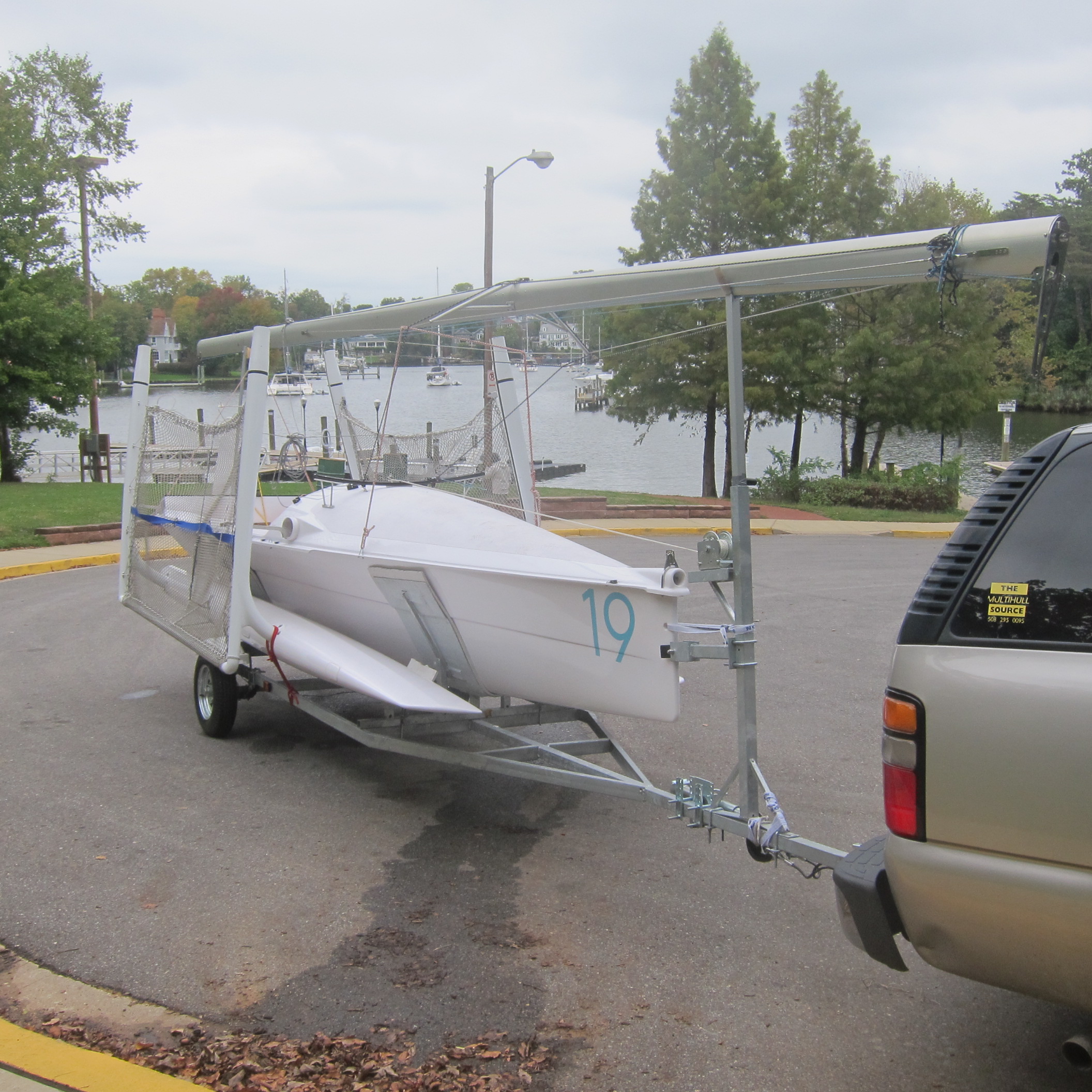

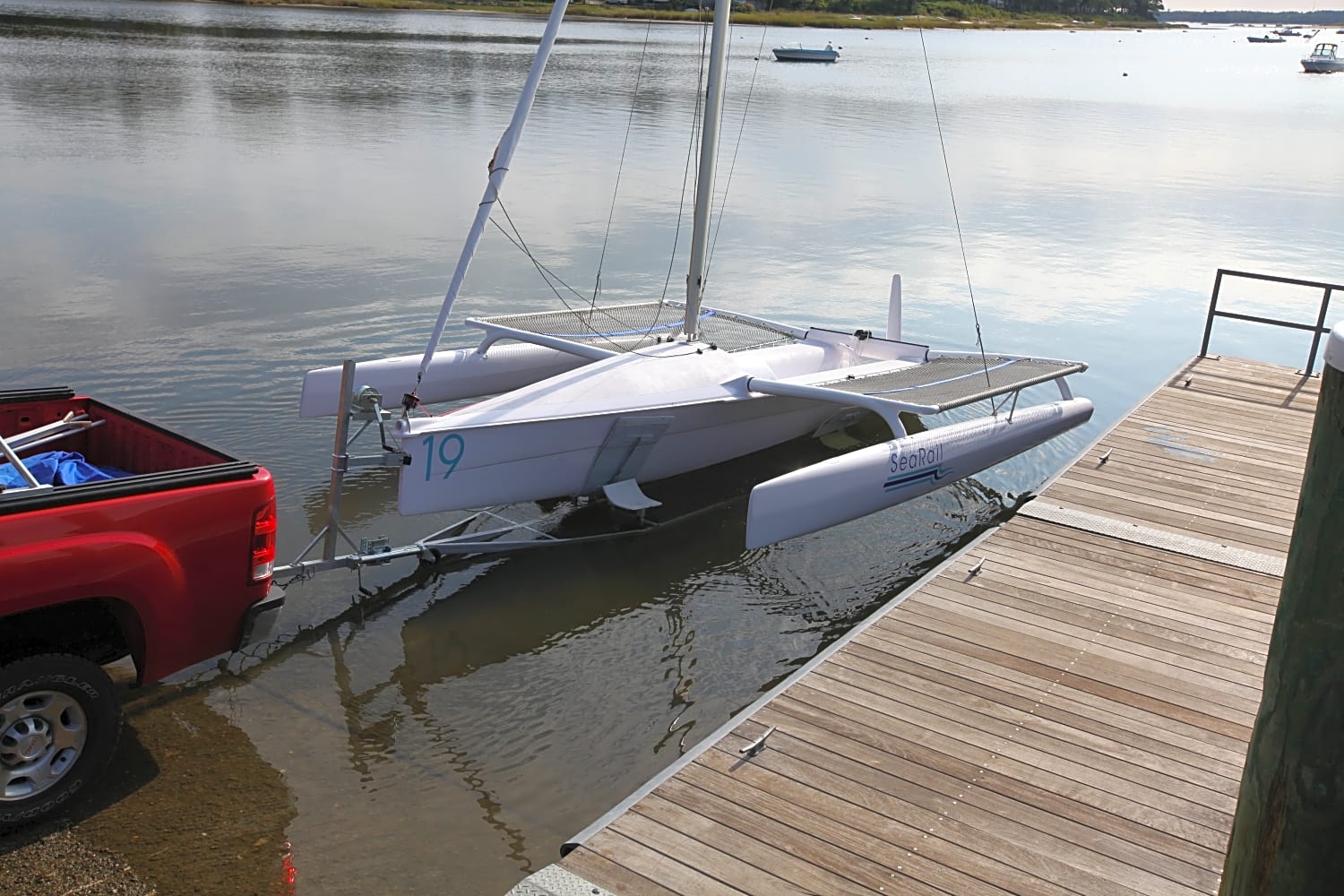

Fiberglass cradles mounted on a small boat single axle galvanized trailer
DISCLAIMER:
The Multihull Source, Inc. offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy ofthis information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigatesuch details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawalwithout notice.
